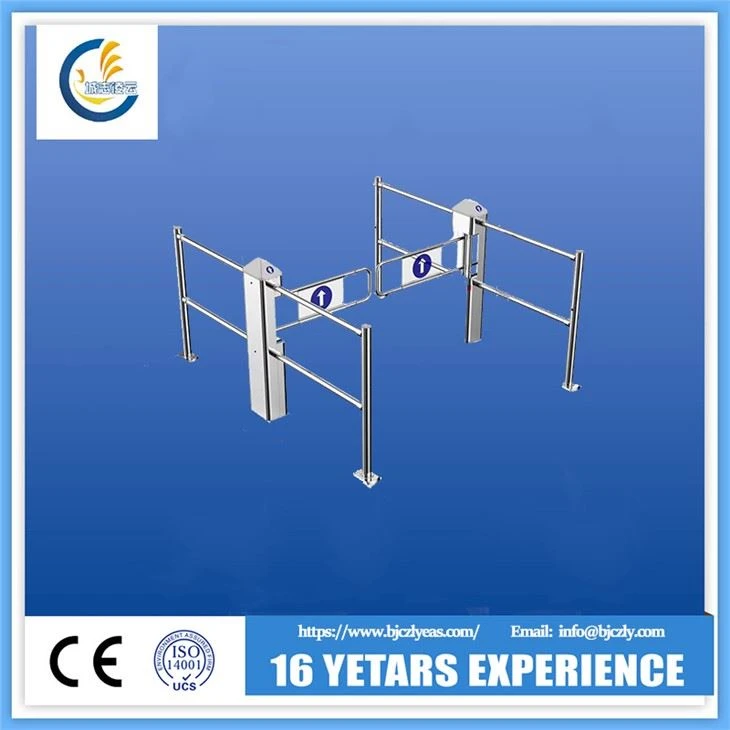

Supermarket infraqizil zanglamaydigan po'latdan yasalgan indüksiyon burilish darvozasi

- Mainboard wiring diagram

- Asosiy platani ulash sxemasi

1. U nosozliklarni o'z-o'zini tekshirish va signalni chaqirish funktsiyasiga ega, bu foydalanuvchilarga texnik xizmat ko'rsatish va foydalanish uchun qulaydir.

2. Can be connected to any control device output control signal or button or remote control to achieve single-way control traffic.

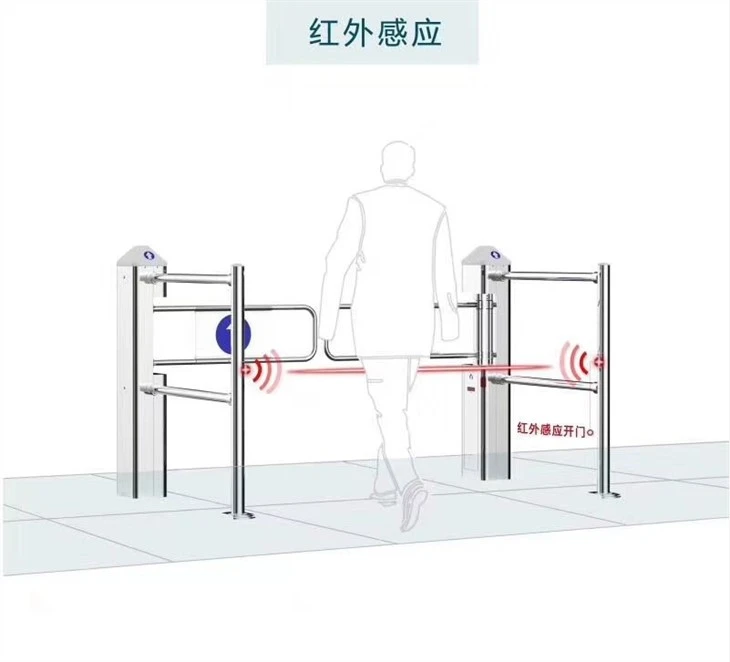

3. Automatic reset function: after each swing 90 degrees, and detect the passage of people and objects, that is, automatic reset, or in the specified time (delay multi-file adjustable) not pass, the system will automatically cancel the right to pass and return to the initial position.

4. Yoritish ko'rsatkichi: harakatni boshqarish uchun yuqori yorqinlikdagi svetofor holati ko'rsatkichi.

5. Yong'in nazorati kirish: doimiy eshik ochilishiga erishish uchun yong'in signalizatsiyasi bilan ulanishi mumkin.

6. Signalni ogohlantirish funktsiyasi: noqonuniy harakat yoki darvoza, avtomatik signalni ogohlantirish.

7. Speed adjustable: the swing arm open and close the speed of multi-level adjustable, users can be set according to the actual needs.

8. A new generation of industrial-grade ARM control system, adding multi-function digital settings, encryption and reset functions.

9. Anti-reversion function: in the process of resetting the swing arm, if the external force reverses the swing arm, the swing arm automatically starts the reverse thrust and sends out an alarm, and when the external force disappears, it automatically returns to zero to resume traffic.

10. Avtomatik himoya funktsiyasi: tashqi kuch tebranish qo'lining normal harakatlanishiga to'sqinlik qilganda va tashqi kuch uzluksiz bo'lsa, tizim avtomatik himoyadan keyin 20 soniyadan keyin avtomatik ravishda aniqlaydi va uyqu holatiga kiradi. Keyingi qonuniy signal kiritish, eshik avtomatik ravishda normal holatga qaytadi.

11. Ko'p bosqichli to'qnashuvga qarshi tampon funktsiyasi: noqonuniy o'tish yoki zarb qilishda tormoz tayog'i mos keladigan burchakni tamponlaydi va darhol teskari harakatni boshlaydi va bir vaqtning o'zida signalni ishga tushiradi, bu tez-tez yoki tez-tez sodir bo'lgan mexanik shikastlanishni sezilarli darajada kamaytiradi. insoniylashtirilgan anti-zararni amalga oshirishda doimiy to'qnashuv.

12. Unmanned duty: power-off swing arm automatically open, power-on automatic reset (blocking traffic).

Texnik parametrlar

Nosozliklarni tuzatish rejimiga kirish tavsifi

1. Menyu tugmachasini 3 soniya bosing, L-1 paydo bo'ladi, tasdiqlash tugmasini bosing, eshikni yopish vaqtini tuzatish rejimiga kiring

2. Press menu key 3 seconds, appear L-1, press key until appear L-7, press confirm key, enter gate power off door debugging mode (see table below for details)

3. Menyu tugmachasini 3 soniya bosing, L-1 paydo bo'ladi, L-12 paydo bo'lguncha tugmani bosing, tasdiqlash tugmasini bosing, eshik tovushini tuzatish rejimiga kiring (batafsil ma'lumot uchun quyidagi jadvalga qarang)

4. Menyu tugmachasini 3 soniya bosib turing, L-1 paydo bo'ladi, tugmachani bosing, D-1 paydo bo'ladi, tasdiqlash tugmachasini bosing, tebranish qo'lini kerakli joyga surish uchun ovozli so'rov, bu safar tebranish qo'lini sozlashingiz mumkin, sozlang, tasdiqlash uchun menyuni bosing, chiqish uchun menyuni bosing (quyidagi jadvalga qarang)

Foydalanuvchilar disk raskadrovka kodlari jadvallarini o'rnatishlari mumkin
